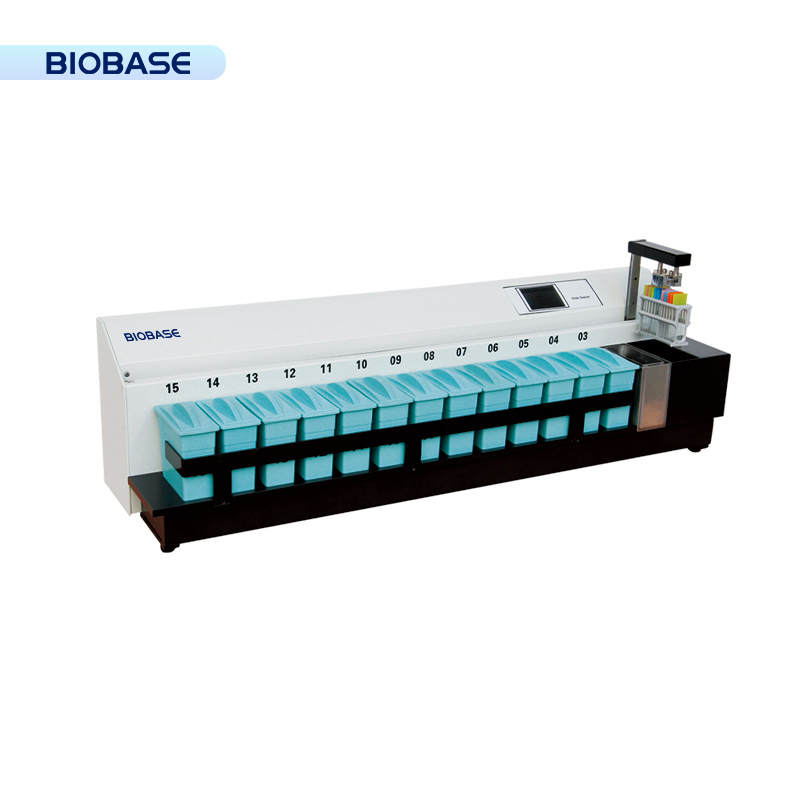

Fully Automated Tissue Slide Stainer with green inner-cycling air purification system – BK-TS3
Product Description
Features:
* Imported high-quality parts, smooth operation, low noise, ergonomic design
* Intelligent automatic water influx/efflux/drainage control system
* Green inner-cycling air purification system remove poisonous gas
* 4 sets of editable programs can be queried on line
* Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
* Small footprint can be placed near the sectioning area for optimal workflow (BK-TS3)
* The APS-coated sturdy housing, resistance to corrosion
* The slide rack can be optionally stopped either above or submerged in cup based on user’s selection after the staining process ends
* Operation error alarm
* Imported high-quality parts, smooth operation, low noise, ergonomic design
* Intelligent automatic water influx/efflux/drainage control system
* Green inner-cycling air purification system remove poisonous gas
* 4 sets of editable programs can be queried on line
* Real-time visual simulation with icons displays working status dynamically, clearly and intuitively
* Small footprint can be placed near the sectioning area for optimal workflow (BK-TS3)
* The APS-coated sturdy housing, resistance to corrosion
* The slide rack can be optionally stopped either above or submerged in cup based on user’s selection after the staining process ends
* Operation error alarm
Technical Parameter
|
Model
|
BK-TS2
|
BK-TS3
|
|
Display
|
LCD touch screen
|
|
|
Cup Number
|
18 (Station 1 is for drying, Station 10 is for washing)
|
15 (Station 1 is for drying, station 2 is for washing, other 13 stations for reagents)
|
|
Single Cup Capacity
|
750ml
|
350ml
|
|
Each Cup Processing Time
|
0~59 min
|
|
|
Slides Processed Simultaneously
|
52 slides
|
24 slides
|
|
Dripping Time
|
Adjustable within 0~30 s (shakes above cup)
|
Adjustable within 0~60s(shakes 0~6 times/min adjustable)
|
|
Consumption
|
500W
|
400W
|
|
Power Supply
|
AC220V±10%, 50/60Hz; AC110V±10% 60Hz
|
|
|
Packing Size(W*D*H)
|
1175×460×470 (mm)
|
1060*370*400mm
|
|
Gross Weight
|
71KGS
|
47kg
|
