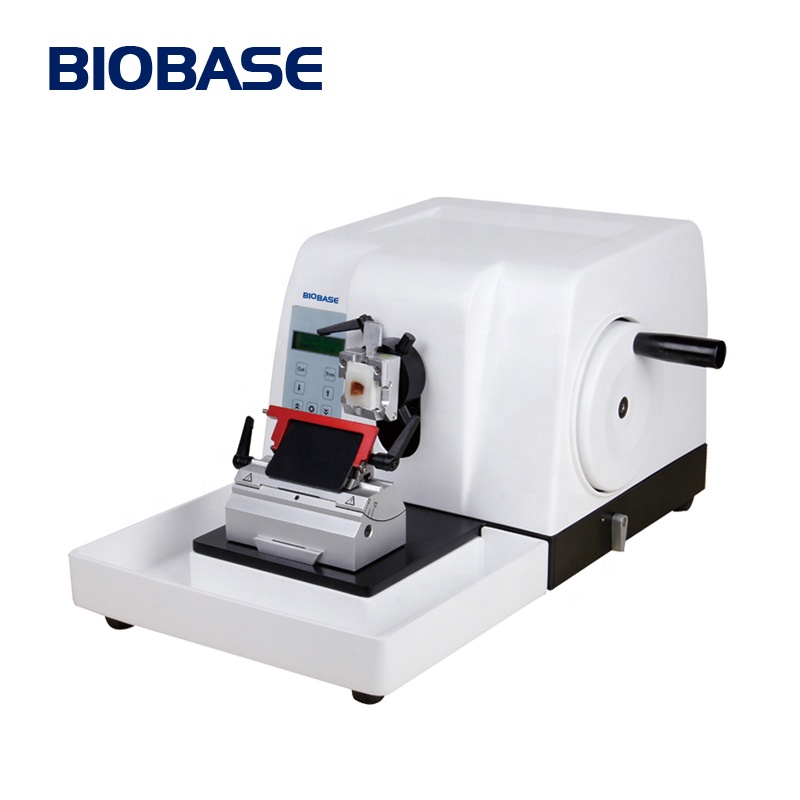

Microtome Semi-automatic – BK-2478

30.000,00 AED33.000,00 AED (-9%)

In stock

Compare
Product Description
Features:

* Large-volume removable waste tray on the top of housing, convenient to use.
* Imported cross-roller guide rails andhigh-precision screw motion mechanism.
* Fast switching between paraffin block clamp and cassette clamp.
* Hand-wheel balance can be precisely adjustedand can be locked at any position,ensuring safetyand convenience of sectioning.
* Blade holder can be laterally movedwithout direct contact,enabling use of the entire length of the blade. (three different segments).
* The red bar on the blade holder covers the whole length of blade to protect the user and enables easy change of the blade.
Specification
Model
BK-2478
BK-2488
BK-2498
Mode
Semi-automatic without intelligent sensing
Semi-automatic with intelligent sensing
Automatic or Manual Mode without intelligent sensing
Function
Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (exceptBK-2478).
Retraction Range
/
0~50μm ( If 0 is set, retraction function is off )
5~50 (Retraction distance is optional in this range, and increment is 5μm, such as, 5, 10, 15, 25…)
Display
LCD Display:
sectioning thickness,
trimming thickness,
slice count.
OLED Display:
sectioning thickness, trimming thickness,
slice count.
LED display:
sectioning thickness,
trimming thickness,
slice count,
slice speed.
Sectioning Thickness Range
0~60μm
0~1.0μm increment 0.25μm
1~10μm increment 1μm
10~20μm increment 2μm
20~60μm increment 5μm
0.25~100μm
0.25~2.5μm increment 0.25μm
2.5~5μm increment 0.5μm
5.0~10μm increment 1μm
10~30μm increment 2μm
30~60μm increment 5μm
60~100μm increment 10μm
Trimming Thickness Range
0 ~60, 0~100,
1~900μm
1~10μm increment 1μm
10~20μm increment 2μm
20~100μm increment 5μm
100~900μm increment50μm
1~600μm
1~10μm increment 1μm
10~20μm increment 2μm
20~50μm increment 5μm
50~150μm increment 10μm
150~600μm increment 50μm
Whole Layer Clearance Distance(Only for BK-2488)
10~6000μm
(10, 12, 15, 20…..6000, after 15μm, the increment is 5μm)
Specimen HorizontalStroke
28mm
Specimen Vertical Stroke
52 mm
70mm
Specimen Orientation
XY – 8°, rotation 360°
XY – 8°, rotation ±90°
Mini. Sectioning Thickness
0.25μm
Max. Specimen Size
50*70mm
70*70mm
Feed Speed
450μm/s
1500μm/s,3500μm/s
Precision
±5%
Standard Accessory
Cassette Clamp or Paraffin Block Clamp(Paraffin BlockClamp is acquiescent)
Consumption
100W
150W
Power Supply
AC110/220V±10%, 50/60Hz
External Size(W*D*H)
585*410*305mm
575*420*330mm
580*475*340mm
Package Size(W*D*H)
670*550*480mm
670*550*480mm
680*570*500mm
Gross Weight
45kg
45kg
60kg
