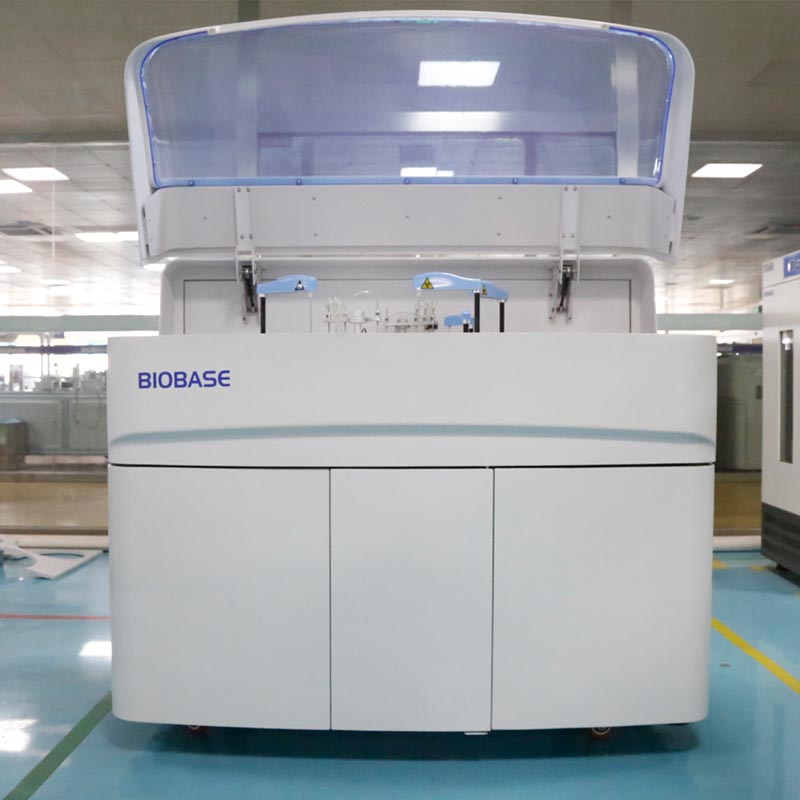

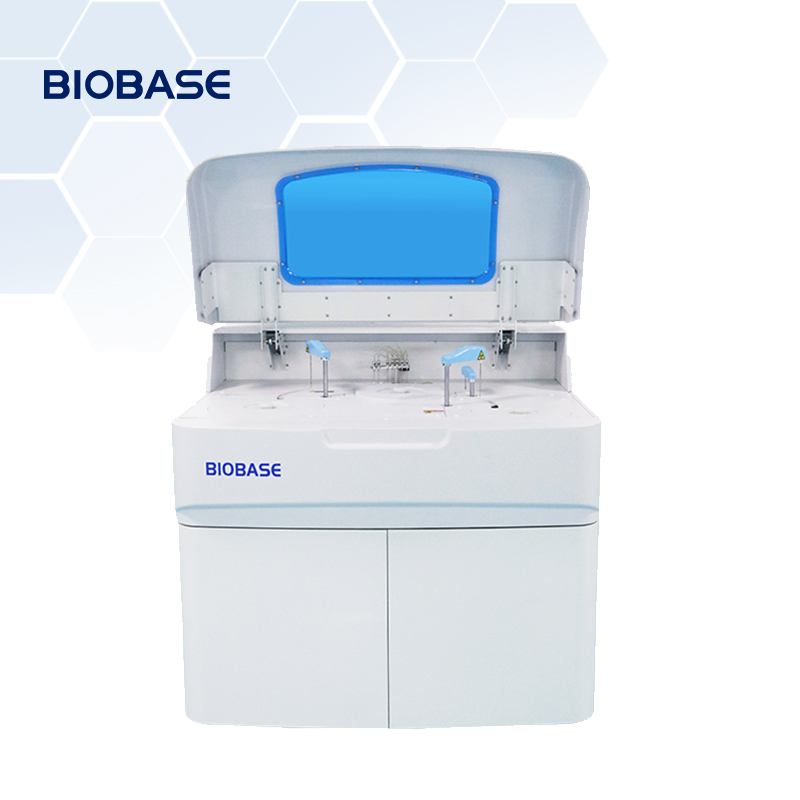

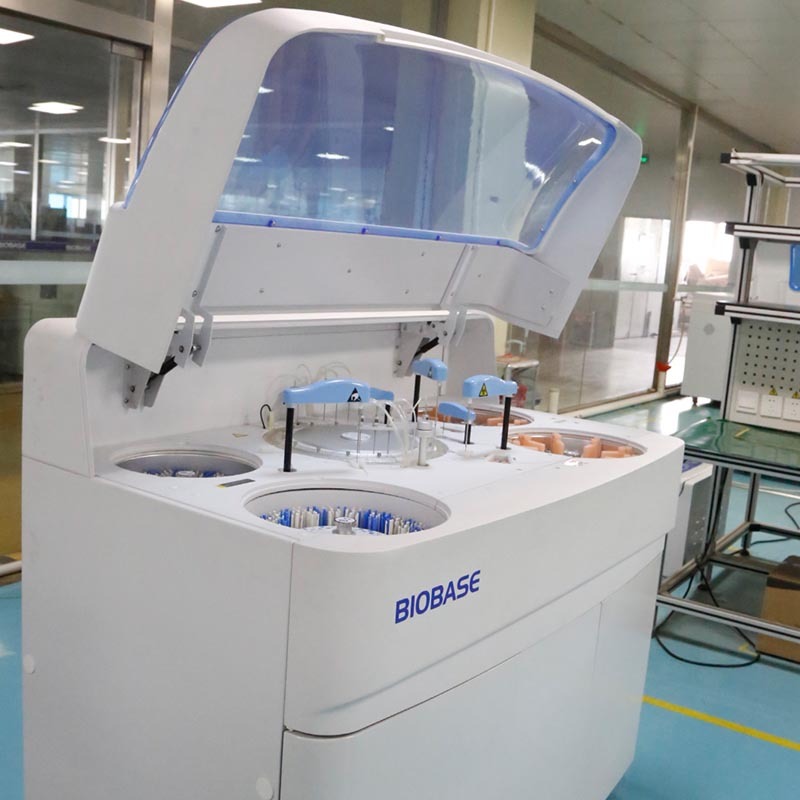

Semi auto chemistry analyzer
Product Description
Features:
①. 400 tests per hour.
②. 90 Reagent positions.
③. 120 Reaction cuvettes.
④. Built-in sample barcode system optional.
⑤. 60 Sample positions(90 sample positions optional).
⑥. Probe with anti-collision function, liquid level detection function.
Product Introduction
|
Model
|
BK-400
|
|
|
Overall
Performance |
Throughput
|
400 Test/hour
|
|
Analysis Method
|
End-point, Fixed-time, Rate(Kinetic), Turbidimetry
|
|
|
Sample & Reagent System
|
Sample Positions
|
60 or 90 sample positions, built-in barcode system available
|
|
Reagent Positions
|
45 refrigerated reagent positions
|
|
|
Sample Volume
|
2~70μl
|
|
|
Reagent Volume
|
20~350μl
|
|
|
Probe
|
with anti-collision function, liquid leveldetection function
|
|
|
Probe Washing
|
Automatic washing interior and exterior
|
|
|
Reagent Cooling
|
Refrigerated tray with independent switch
|
|
|
Reaction System
|
Temperature Control
|
37±0.1℃, real-time monitoring
|
|
Cuvettes
|
120reusable cuvettes, optical length 6mm
|
|
|
Mixer Probe
|
Independent stirring
|
|
|
Washing
|
Automatic cuvettes washing
|
|
|
STAT function
|
YES
|
|
|
Optical System
|
Light Source
|
12V/30W halogen-tungsten lamp
|
|
Spectrophotometry
|
Post-spectral spectrophotometry
|
|
|
Wavelength
|
340,405,450,510,546,578,630,700nm
|
|
|
Absorbance
|
0~3.0Abs
|
|
|
Calibration & QC
|
Calibration
|
Linear:K factor, 1-point ,2-point and multipoint linear
Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control
|
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
|
|
|
Data Management
|
Software
|
Windows 7/8/10 , 32or 64bit
|
|
LIS System
|
Bi-direction,support HL7 protocol
|
|
|
Interface
|
LAN port access
|
|
|
Printer
|
External,multiple reporting mode available
|
|
|
Working Conditions
|
Power Supply
|
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
|
|
Temperature
|
10~30℃
|
|
|
Water Consumption
|
Deionized water:12L/H
|
|
|
Humidity
|
30-80%
|
|
|
Size & Weight
|
External Size (W*D*H)
|
1167*780*1016mm
|
|
Net Weight
|
193kg
|
|
|
Package Size (W*D*H)
|
1348*928*1399mm
|
|
|
Gross Weight
|
267kg
|
|
